HAVex Tri-Axial Hand-Arm Vibration Meter
• Simple Operation
• Robust Accelerometer & Cable
• Large Colour Display
• Rechargeable Battery
• Easily view, export and report data
• Supplied as a kit with everything you need to begin measuring
-
Product Overview
The HAVex was designed specifically to conduct accurate Hand Arm Vibration readings to comply with The Control of Vibration at Work Regulations (2005)

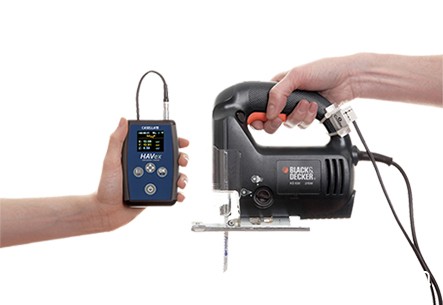

This simple to use hand arm vibration meter (HAV) enables you to measure the vibration levels of the tools your employees use to ensure they are not over-exposed to hand arm vibration during their daily routine.
Once measured, the HAVex provides you with the actual level of vibration (as opposed to manufacturers’ figures alone) of a particular tool. This data can be used to calculate actual exposure time into HSE Exposure Points. Please follow the link to the ready reckoner to calculate daily exposures. The ready reckoner covers a range of vibration magnitudes up to 40m/s2 and range of exposure times up to 10 hours. The data can also be used to enable you to create a database of tool condition and maintenance.

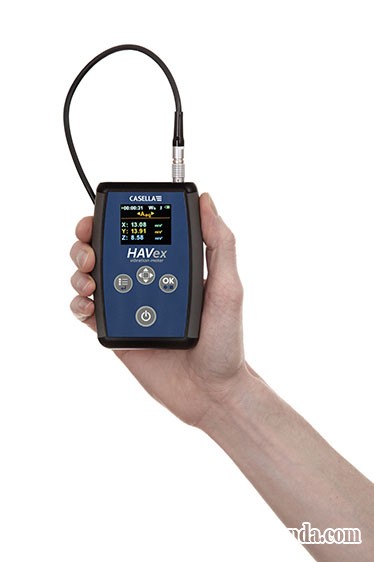

Designed with only 3 operational buttons, take measurements with the HAVex hand arm vibration meter (HAVS) with ease and view in real time on the large colour display. The HAVex also has a rechargeable battery so it’s ready for use when you are. The HAVex also stores data which can be downloaded via the VibDataLite Vibration Analysis Software, allowing you to keep a permanent record for compliance purposes. The VibData Lite software is completely free and is supplied with the meter.
You can upgrade to Vibdata Pro which has the added features of;
- An exposure calculator
- Merge/Combine Results
- Add Images
- Trend Analysis
Accessories and Part Numbers
M104006
Casella HAVex kit:

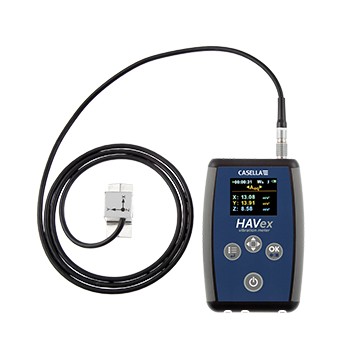

Comprising of: HAVex meter, Accelerometer & Cable, Mounting Plate, Carry Case VibData Lite Software
Everything you need is supplied in the kit, but if you need replacement parts:
M104009
HARM Tri-Axial Accelerometer & Cable
M104016
Mounting Plate
M104017
Battery Pack
M104018
Charger Unit
M104020
USB Cable
M104014
VibData Pro software
-
Specification
Technical Specification
Performance
Conforms to ISO 8041 : 2005 Human Response to Vibration - Measuring Instrumentation
Level Ranges:
Low: 0.05-200m/s2, 0.005-20.4g
High: 0.5-2000m/s2, 0.05-204g
Channels:
1
Parameters:
Acceleration, Arms, Aeq, Amax, Peak, Vector Sum, Exposure Points
Linear Range:
72 dB
Frequency Weighting:
WH - Hand Arm Filter
Memory:
Flash Memory storing up to 992 recordings
Transducer:
KD1010, 10mV/g
Noise Floor:
Low: 0.002 m/s2
High: 0.02 m/s2
Display:
Full colour, Graphic OLEC 160 x 128
Batteries:
NiMH re-chargeable (typically 10 hours of continuous use)
Connections:
AC output: 4 pole 3.5mm jack
Download: USB Micro B (cable incl.)
Recharge: DC socket (charger & cable supplied)
Environmental:
Temperature: -10oC to +50oC
Humidity: up to 90% RH non-condensing
Electromagnetic:
SI 2005/281, 2004/108/EC
Case:
High impact ABS plastic case & tactile membrane keypad
Relevant Standards:
ISO 5349 : 2001 Mechanical Vibration - Guidelines for Measurement
ANSI S2.70 (2006) guide for the measurement and evaluation of human exposure to vibration transmitted to the hand
